Collection: 3SW Three Way Register

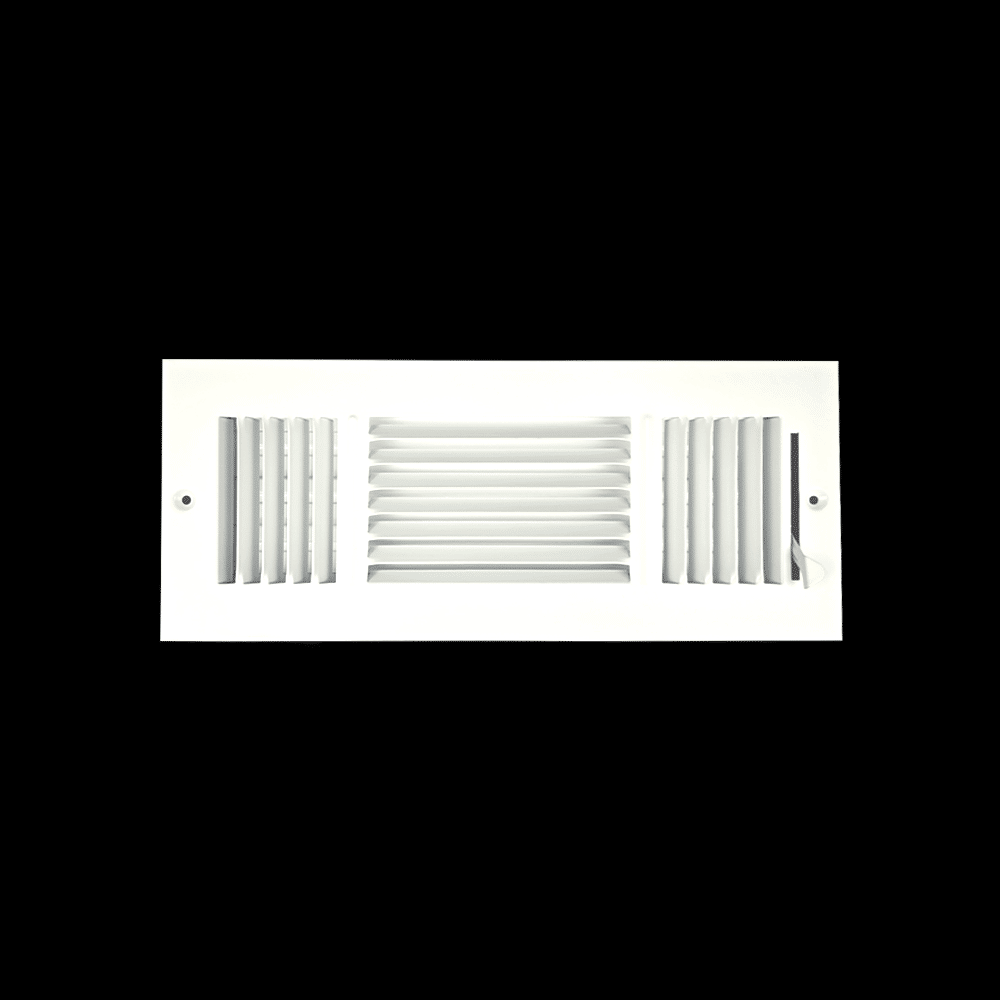

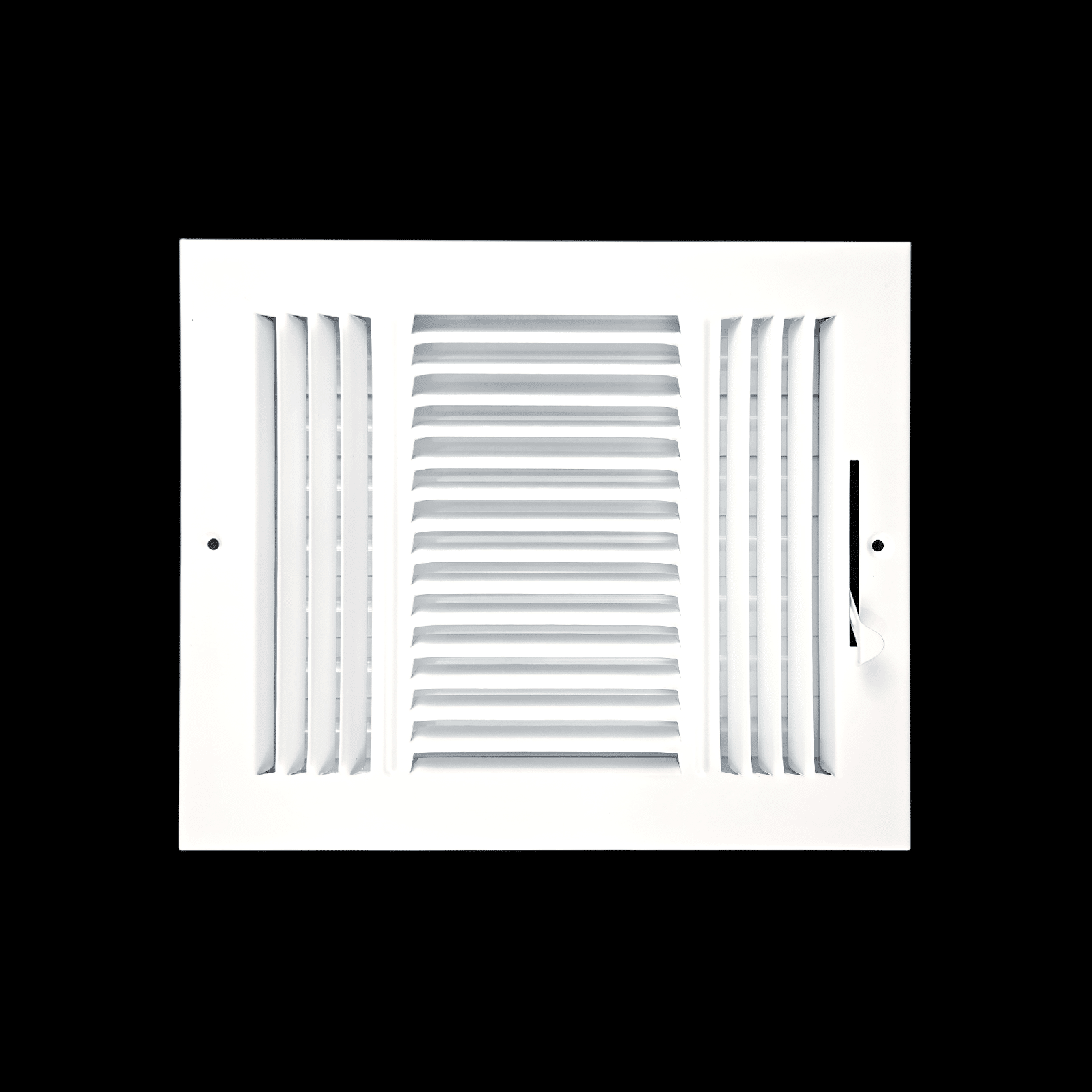

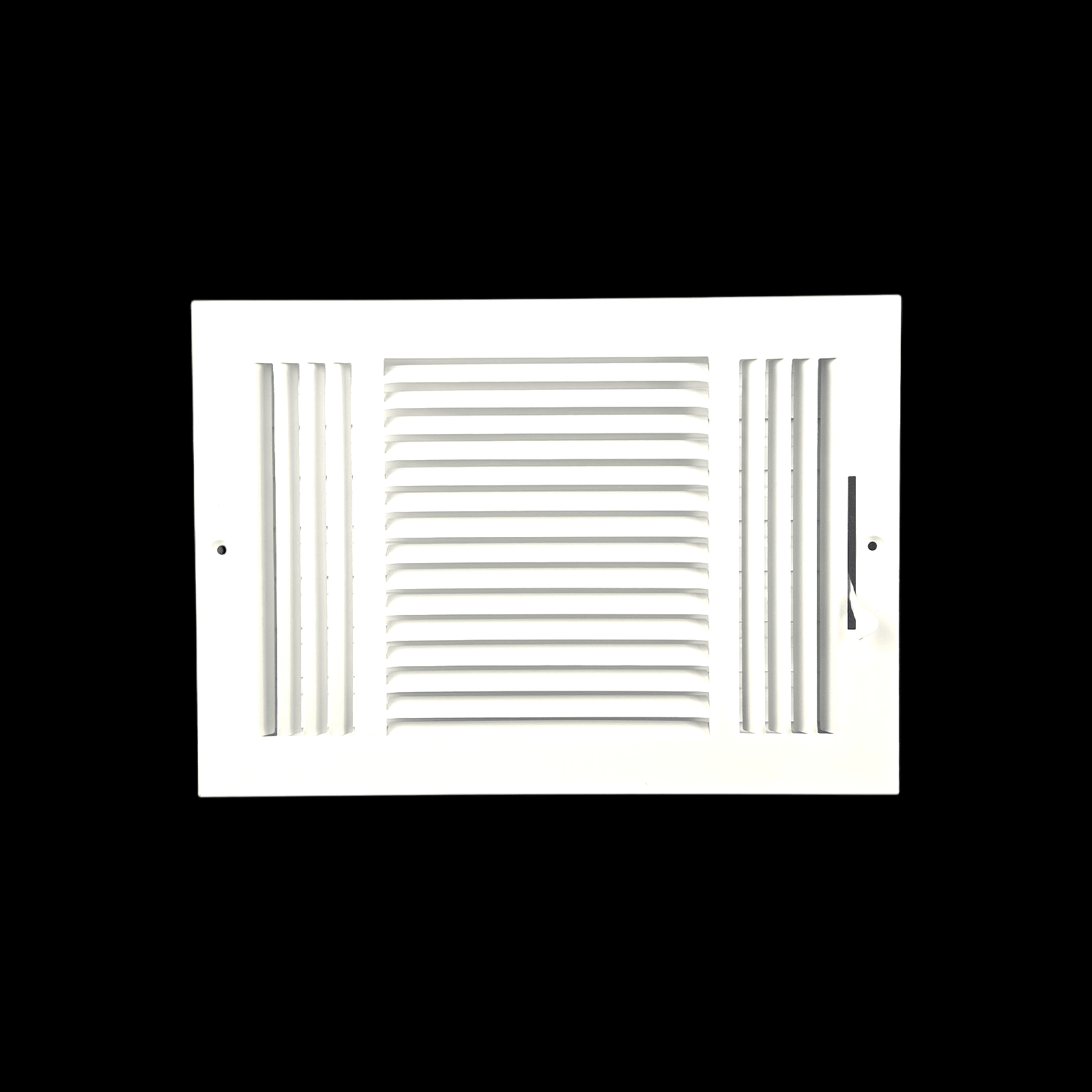

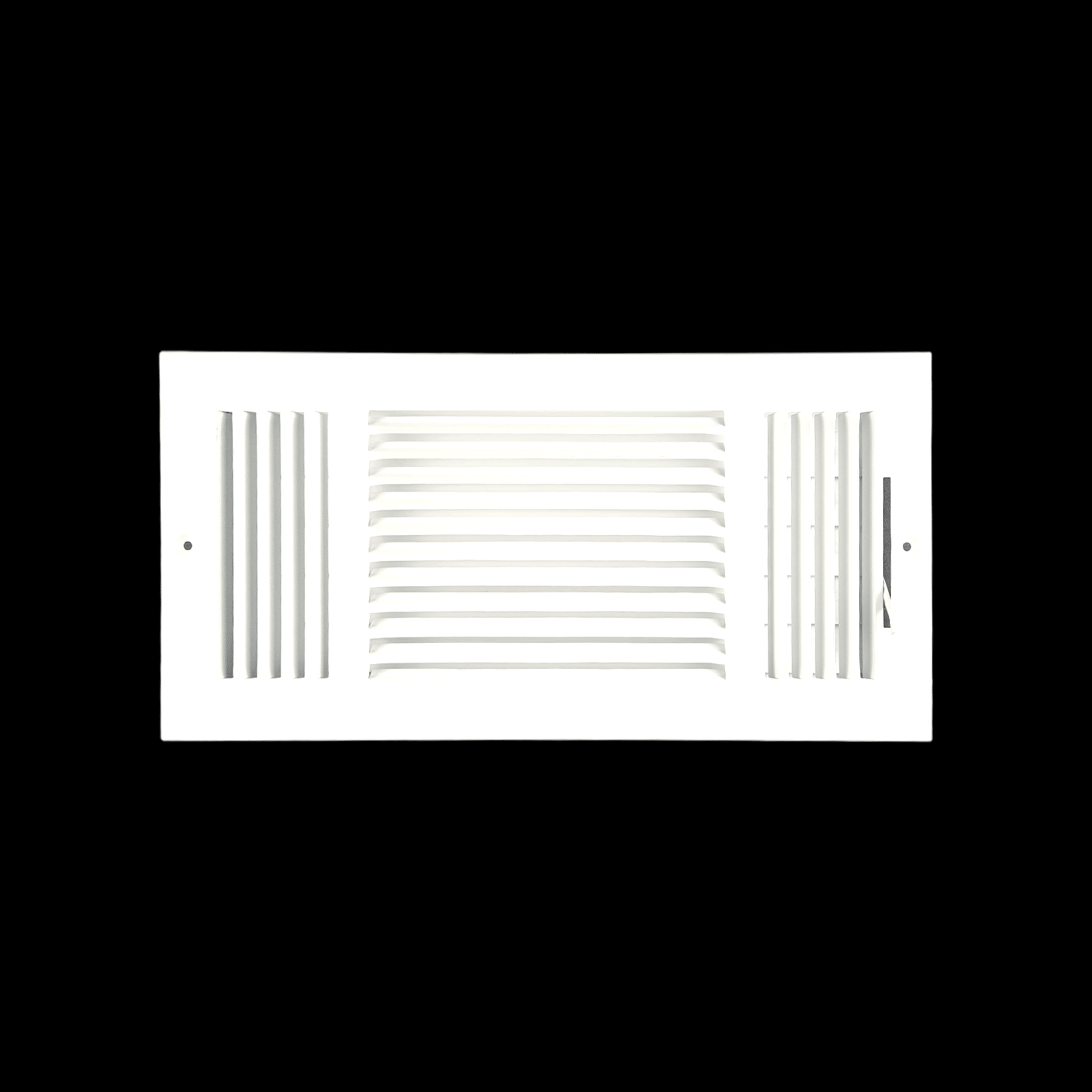

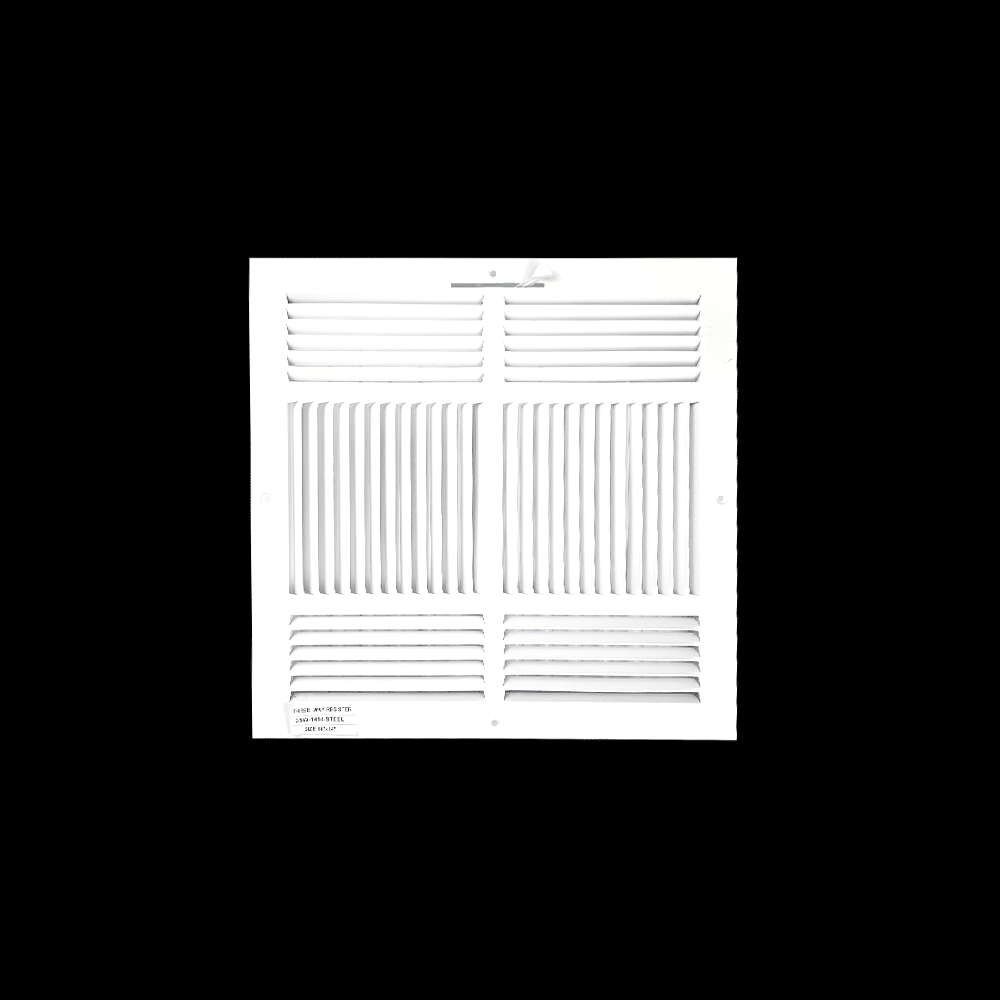

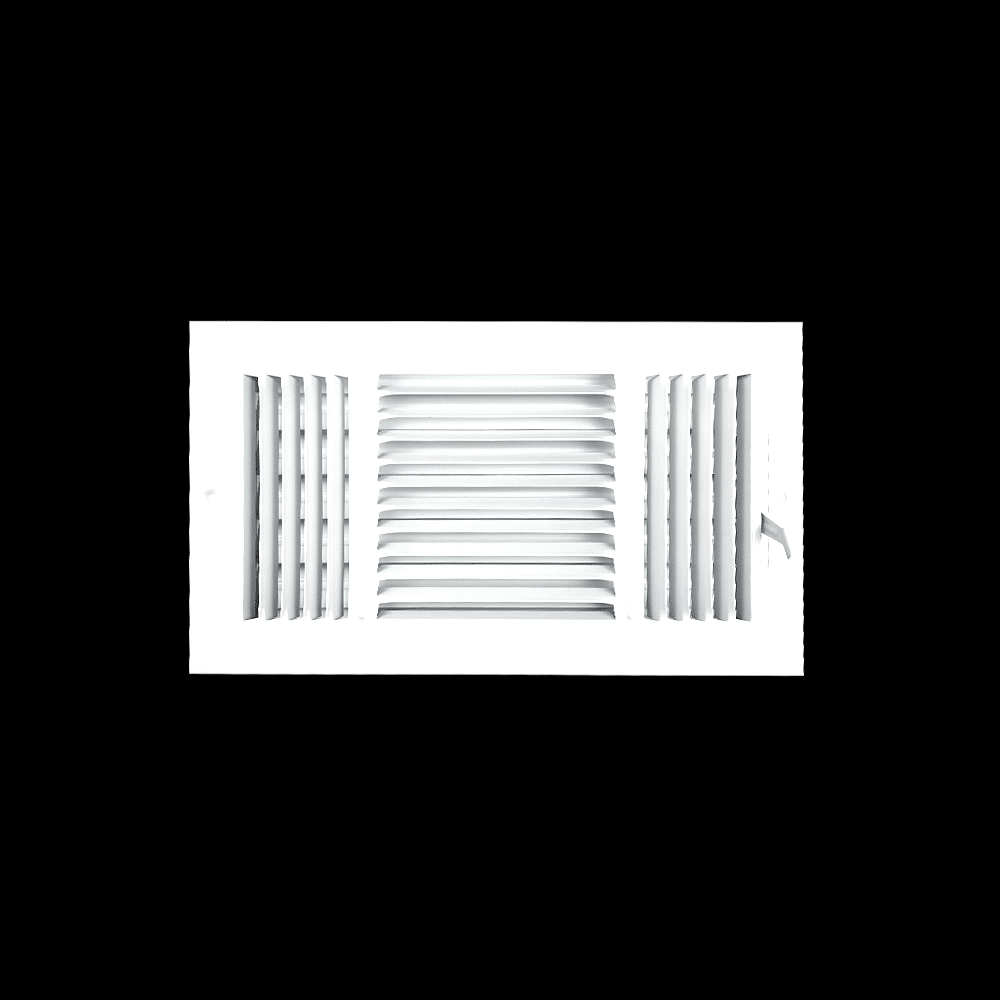

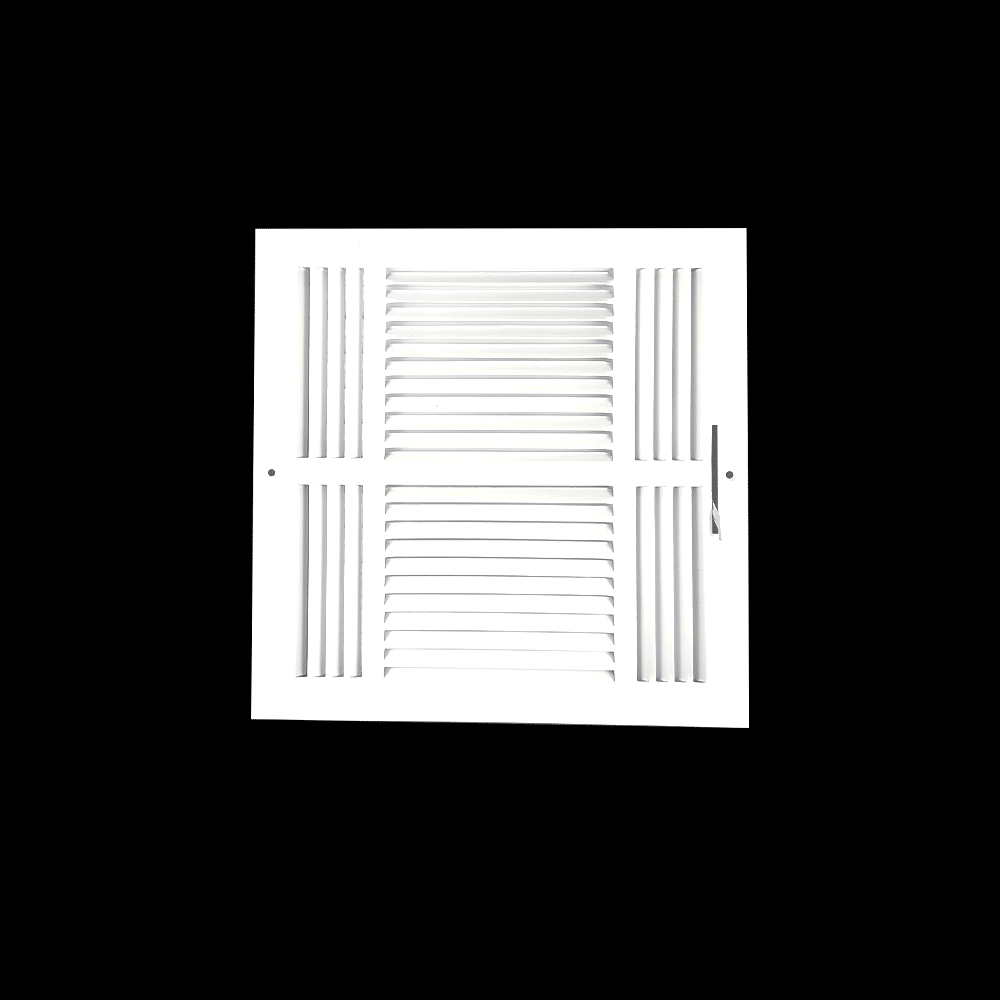

3SW Three-Way Steel Registers for Ceiling & Wall Applications

Optimize your HVAC airflow with our professional-grade 3SW three-way registers, designed to distribute conditioned air evenly across residential and commercial spaces. These steel ceiling and wall registers feature fixed blades that direct airflow in three directions, providing superior coverage compared to standard two-way models.

The 3SW series is ideal for central ceiling installations and wall applications where balanced air distribution is essential. Each register includes an adjustable multi-shutter damper for precise airflow control, while the durable powder-coated white finish ensures long-lasting performance and aesthetic appeal.

Quick Specifications

• Material: High-quality steel

• Finish: Powder-coated white, smooth

• Blade Design: Fixed blades for 3-way airflow distribution

• Blade Angle: 40° fixed angle

• Fin Spacing: 1/2" centers

• Applications: Sidewall and ceiling mount

• Control: Adjustable multi-shutter damper included

• Installation: Pre-drilled countersunk holes with matching screws

What Is a Three-Way Register?

A three-way register is an HVAC air distribution component designed with fixed blades that direct conditioned air in three directions—typically left, right, and downward when mounted on a ceiling, or in three directional streams when installed on a wall. This design provides broader coverage compared to two-way registers, making it ideal for:

• Square or centrally-located rooms requiring even air distribution

• Ceiling installations where air needs to spread across the entire space

• Open concept areas with multiple seating or work zones

• Commercial spaces requiring consistent temperature throughout


The 3SW series combines three-way airflow with adjustable damper control, allowing you to fine-tune airflow volume while maintaining optimal distribution patterns.

Three-Way vs. Two-Way Registers: Which Do You Need?

Understanding the difference between three-way and two-way registers ensures optimal HVAC performance:

Choose a three-way register when you need broad, even air distribution from a central location.
Choose a two-way register when you need focused airflow along a specific axis or in long, narrow spaces.

Key Features of the 3SW Series

Three-Way Airflow Distribution

The fixed blade design directs air in three distinct directions, providing:

• Even temperature distribution throughout the room

• Reduced hot and cold spots compared to directional registers

• Better air mixing for improved comfort

• Optimal performance in square or centrally-located spaces.

Steel Construction

Manufactured from high-grade steel for superior durability:

• Rigid structure prevents warping or sagging

• Corrosion resistant for long-term reliability

• Suitable for both residential and commercial applications

• Superior to plastic alternatives in high-traffic areas

Adjustable Multi-Shutter Damper

The integrated damper system allows precise control:

• Adjust airflow volume from fully open to completely closed

• Balance room-to-room temperature variations

• Reduce energy costs by controlling unused spaces

• Quiet operation with smooth lever control

40-Degree Blade Design

Fixed fins angled at 40 degrees with 1/2" spacing:

• Maximizes airflow volume with minimal resistance

• Reduces noise compared to steeper angles

• Prevents dust accumulation on horizontal surfaces

• Creates optimal throw patterns for room coverage

Powder-Coated White Finish

The smooth white powder coating delivers:

• Scratch and chip resistance during installation

• UV stability preventing yellowing over time

• Easy cleaning with standard household products

• Neutral aesthetic matching any interior décor

Installation Guide

Tools Required:

• Phillips head screwdriver

• Tape measure

• Level (for ceiling installation)


Step-by-Step Installation:

1. Measure the duct opening carefully. Measure width first, then height. Round up to the nearest inch to determine your correct size from our available options.

2. Remove old register by unscrewing existing fasteners. Clean duct opening edges of debris or old paint.

3. Position the 3SW register with the damper control accessible. For ceiling installation, center the register in the room for optimal three-way distribution.

4. Secure with included screws through the pre-drilled countersunk holes. Do not overtighten—a snug fit prevents rattling while allowing for thermal expansion.

5. Adjust damper to desired airflow volume. Test airflow pattern to ensure even distribution throughout the space.


Pro Tip: For ceiling installations, position the register centrally in the room to maximize three-way airflow coverage. Avoid placing furniture directly below the register to allow unrestricted air distribution.

Note: Always measure your duct opening (the hole in the wall or ceiling), not the existing cover. The outer frame is approximately 1-3/4 inches larger than the duct opening to ensure full coverage and professional appearance.

Best Applications for Three-Way Registers

Residential Applications:

• Square bedrooms requiring even temperature distribution

• Living rooms with central ceiling locations

• Open concept kitchens and dining areas

• Home offices with multiple work zones

• Basement recreation rooms


Commercial Applications:

• Office spaces with cubicle layouts

• Retail stores requiring consistent customer comfort

• Conference rooms with central ceiling mounting

• Restaurant dining areas

• Healthcare waiting rooms


Maintenance & Care

To ensure optimal performance of your 3SW three-way register:

• Monthly: Dust with microfiber cloth or vacuum with brush attachment

• Quarterly: Check damper operation, lubricate if sticking

• Annually: Remove and clean with mild soap solution, inspect for corrosion

• As needed: Touch up paint nicks with appliance-grade white paint

Frequently Asked Questions

What makes a register "three-way"?

A three-way register has fixed blades that direct airflow in three directions (typically left, right, and down for ceiling mounts). This provides broader, more even air distribution compared to two-way registers that only direct air in two opposite directions.

When should I use a three-way register instead of a two-way?

Use a three-way register for square rooms, central ceiling locations, or open concept spaces where you need even air distribution. Use a two-way register for long rectangular rooms, hallways, or when you need focused directional airflow.

Can I install a 3SW register on both walls and ceilings?

Yes, the 3SW series is designed for both sidewall and ceiling applications. The steel construction makes it suitable for either mounting location. Ceiling installation is most common for three-way registers to maximize distribution coverage.

Does the 3SW register include a damper?

Yes, every 3SW three-way register includes an adjustable multi-shutter damper. This allows you to control airflow volume from fully open to completely closed, helping balance room temperatures and reduce energy costs.

How do I measure for a three-way register?

Measure the width and height of the duct opening (the hole in your wall or ceiling), not the existing cover. Round up to the nearest inch. The 3SW outer frame is approximately 1-3/4 inches larger than the duct opening to ensure full coverage.

What sizes are available in the 3SW series?

The 3SW series is available in multiple standard HVAC sizes to fit most residential and commercial duct openings. Browse our collection to find the size that matches your measurements.

Is a three-way register more efficient than a two-way?

Efficiency depends on your room layout. Three-way registers provide better coverage and comfort in square or central locations by distributing air more evenly. Two-way registers are more efficient for long throws in rectangular spaces. Choose based on your room shape and air distribution needs.
